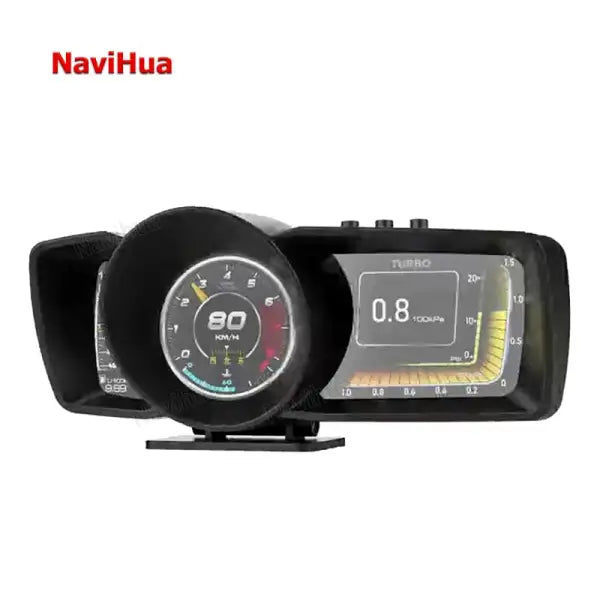

Auto Meter Speedometer Obd2 Monitor Digital Temperature Gauge Digital Voltage Speed Meter Auto Meter Series

item

value

Type

OBD Gauge

Function 1

Speed,Tacho,Water Temp

Function 2

Pedal Position,Engine Load,Ignition Advance Angle,Voltage

Function 3

Total Time,This Time,This Speed Average,This Speed Max,This Mileage

Connection method

OBD2

for Honda system

Supports water temperature data display for old models and new models after 18 years, and CT gearbox oil temperature for CVT
gearboxes, which are not found in other brand products. It also comes with an auxiliary drop lock function (speed, gear lock, door
opening, (Emergency brake flashing light, door opening reminder, if these functions are not needed, you can choose to turn off)

Note for Honda turbine models

System Settings-> Turbine / Intake Pressure Calibration needs to be adjusted to 133%, otherwise the data is inaccurate.

for Volkswagen system

Support reading turbine and oil temperature data of models after 2003

for Toyota system

Support reading hydraulic pressure and turbine data of turbine models.

for Mazda System

Support door opening prompt. (Each door can be individually displayed open)
Support oil temperature display of CX series and Artes series.
